Escapade Constant Duty Compact Onboard Air System
Escapade Constant Duty Compact Onboard Air System
SKU:50003
No reviews
Regular price
$799.95 USD
Regular price
Sale price
$799.95 USD
Unit price
/
per
Shipping calculated at checkout.

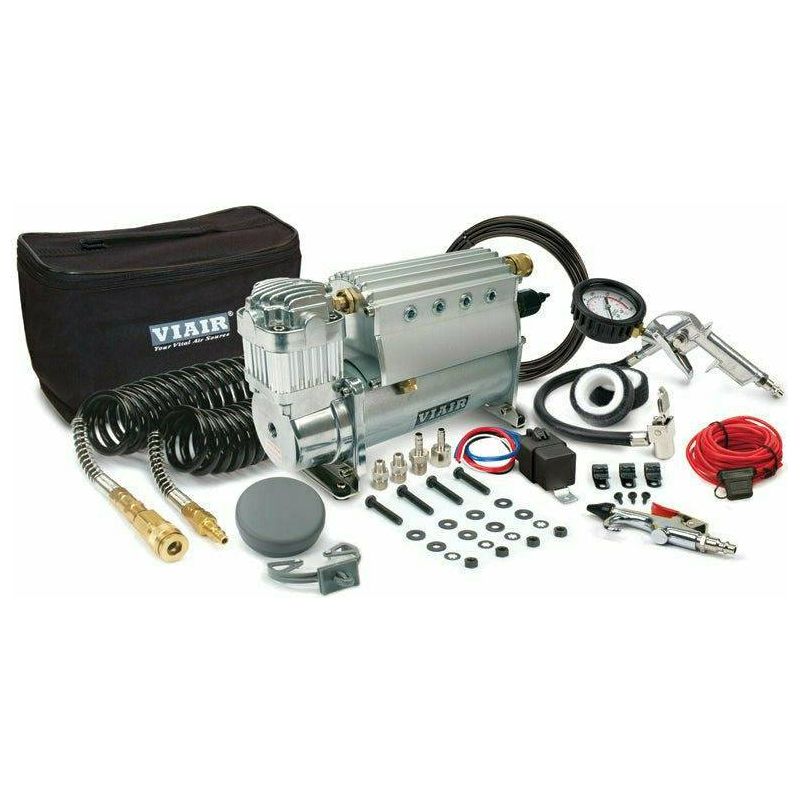

VIAIR’s Escapade Constant Duty Compact Onboard Air System is a compact, pre-packaged compressed air solution that features an industry-leading, 150PSI rated, 100% duty 450C compressor, an extruded aluminum tank, and all components needed to install a working system capable of tire inflation and air locker actuation. This OBA System comes complete with an onboard pressure switch, automatic coupler and a tire Inflation Kit.
Additional Info Download:
| FEATURES |
|---|
| – 450C 150 PSI VIAIR Compressor w/ Thermal Overload Protector (1) |
| – Extruded Aluminum Air Tank (1) |
| – Sealed Pressure Switch (110 PSI on, 145 PSI off) (Pre-installed) (1) |
| – Sealed 40-Amp 4-prong Relay with pre-wired female socket (1) |
| – 40-amp Relay Sealed 4-prong relay w/pre-wired female socket (1) |
| – Tire Inflation Gun with 160 PSI Gauge (1) |
| – 30ft. Coil Hose with Quick Connect and Stud (1) |
| – Rubber Tipped Blow Gun (1) |
| – Quick Connect Coupler (Pre-installed) (1) |
| – 1/4″ 175 PSI Safety Valve (Pre-installed) (1) |
| – 1/4″ NPT Plugs Kit (Pre-installed) (1) |
| – 1/8″ Drain Cock (Pre-installed) (1) |
| – 1/4″ NPT to 1/8″ BSP Adaptors (2) |
| – Air Filter Housing w/ Replacement Air Filter Elements (1) |
| – 20ft. Freeze Resistant 12-Gauge Wire w/ Inline Fuse Holder (1) |
| SPECIFICATIONS |
|---|
| – 12-Volt |
| – Permanent Magnetic Motor |
| – Duty Cycle: 100% @ 100 PSI |
| – Max. Working Pressure: 150 PSI |
| – Max. Amp Draw: 23 Amps |
| – Ingress Protection Rating: IP67 |
| – Dimensions: 9.38″L x 4″W x 6.75″H |
| – Net Weight: 12.5 lbs. |
| – |
| – |
| – |
| – |
| – |
| – |
| – |
Please Note: Use thread sealant for proper installation. Thread tape is not recommended.
Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs. Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.
PERFORMANCE DATA
| PSI | CFM | A | BAR | LPM | A |
|---|---|---|---|---|---|
| 0 | 1.80 | 12 | 0 | 51.0 | 12 |
| 10 | 1.75 | 14 | 1.0 | 47.6 | 15 |
| 20 | 1.60 | 16 | 2.0 | 43.3 | 17 |
| 30 | 1.52 | 17 | 3.0 | 38.2 | 18 |
| 40 | 1.39 | 18 | 4.0 | 34.0 | 19 |
| 50 | 1.27 | 19 | 5.0 | 30.5 | 20 |
| 60 | 1.18 | 19 | 6.0 | 28.1 | 21 |
| 70 | 1.09 | 20 | 7.0 | 26.4 | 22 |
| 80 | 1.04 | 20 | 8.0 | 25.0 | 23 |
| 90 | 0.97 | 21 | 9.0 | 23.0 | 22 |
| 100 | 0.94 | 22 | 10.0 | 21.0 | 21 |
| 110 | 0.90 | 23 | |||
| 120 | 0.86 | 23 | |||
| 130 | 0.81 | 22 | |||
| 140 | 0.76 | 21 | |||
| 150 | 0.72 | 20 |
* Supply Voltage: 13.8 Volts
FILL RATES
| 31″ X 10.5″ | FILL RATE |
|---|---|
| 0 to 30 PSI | 4 min. 05 sec. (±10 sec.) |
| 15 to 30 PSI | 2 min. 10 sec. (±05 sec.) |
| 33″ X 12.5″ | FILL RATE |
| 0 to 30 PSI | 5 min. 30 sec. (±15 sec.) |
| 15 to 30 PSI | 2 min. 50 sec. (±05 sec.) |
| 35″ X 12.5″ | FILL RATE |
| 0 to 30 PSI | 6 min. 55 sec. (± 15 sec.) |
| 15 to 30 PSI | 3 min. 30 sec. (± 10 sec.) |
| 37″ X 12.5″ | FILL RATE |
| 0 to 30 PSI | 7 min. 56 sec. (± 15 sec.) |
| 15 to 30 PSI | 4 min. 09 sec. (± 10 sec.) |
VEHICLE FITMENT
